PV Solar Label Pack

Designed in accordance with:

• AS/NZS 5033:2021 – Installation and safety requirements for PV arrays

  • Clause 5.3.1.2 – Ceiling space DC cable warning

  • Clause 5.5.2.1 – Load break disconnection device signage

  • Clause 5.5.2.2 – PV string disconnection point identification

  • Clause 5.4 – Fire and emergency information (PV reflective sign)

• AS 1319:1994 – Safety signs for the occupational environment (format, colours, symbols)

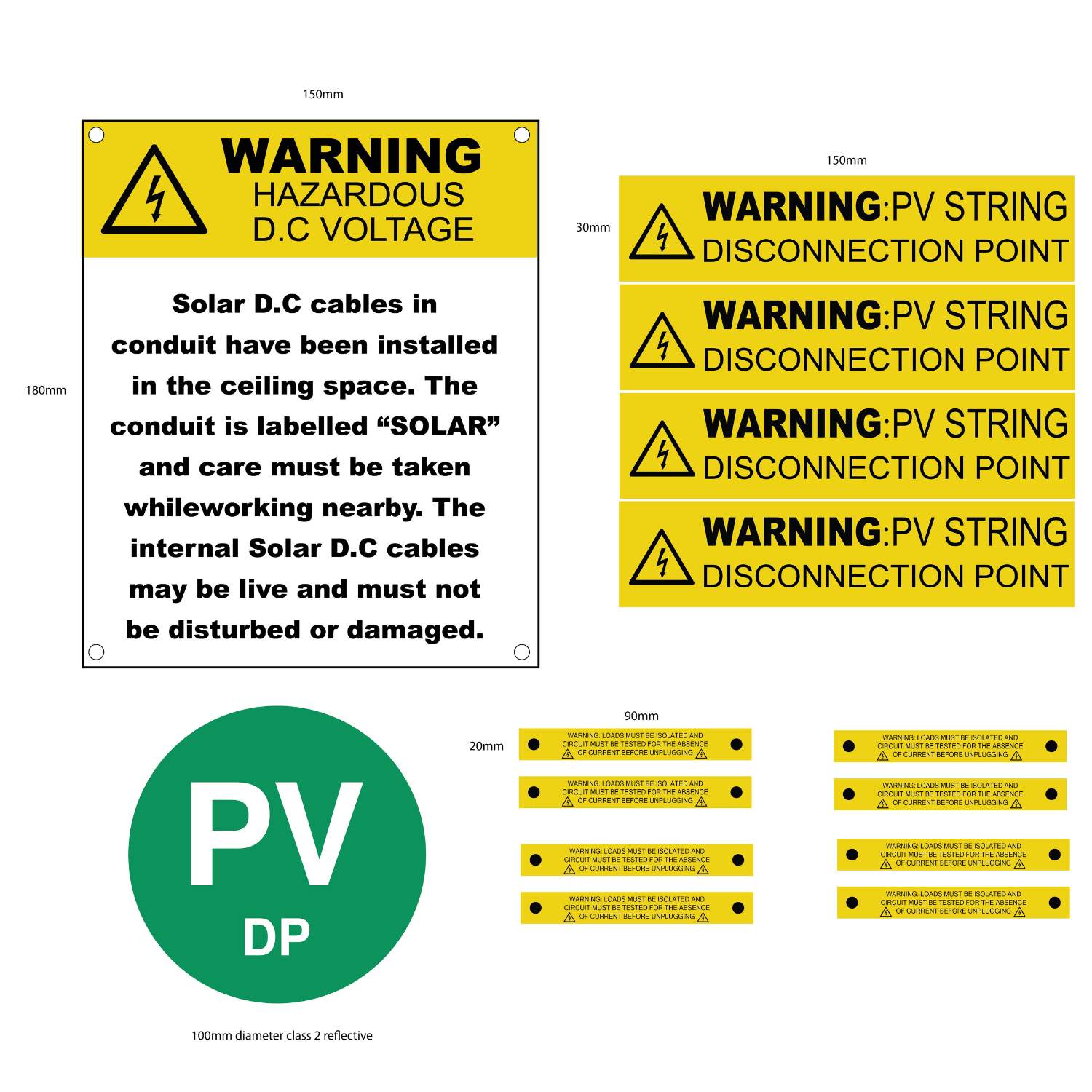

This pack contains:

• 1 × Hazardous D.C. Voltage Ceiling Space Warning (150 × 180 mm)

• 4 × PV String Disconnection Point Labels (150 × 30 mm)

• 8 × Load Break Disconnection Warning Labels (90 × 20 mm)

• 1 × PV System Reflective Sign (100 mm Diameter – Class 1 Reflective)

• 6 × Switchboard Circuit Identification Labels (AS/NZS 4777.1 style)

  • Main Switch (Grid Supply)

  • Main Switch (Inverter Supply)

  • Main Switch (Alternative)

  • Off peak main switch

  • Hot water main switch

  • Main Isolator (Alternative)

  • Main Isolator (Grid)

  • Stand Alone Circuit

• 1 × Inverter A.C. Isolator Label

• 1 × PV Array D.C. Isolator Label

• 1 × Inverter Location Label

• 1 × Shutdown Procedure Plaque (Optional installer branding available)

• 1 × Warning – PV Arrays and Cables Remain Live Label

• 1 × Warning – Hazardous D.C. Voltage Label
